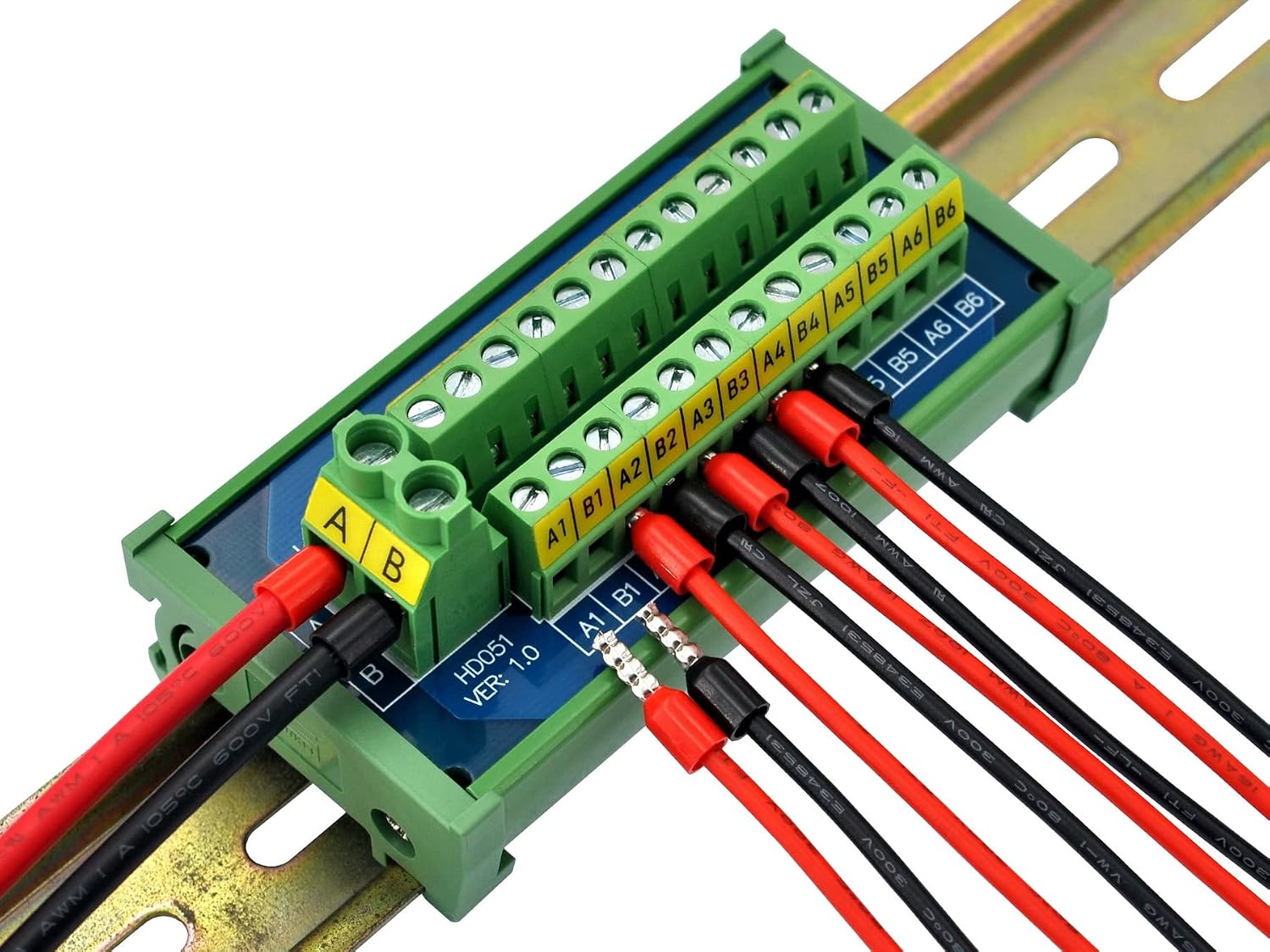

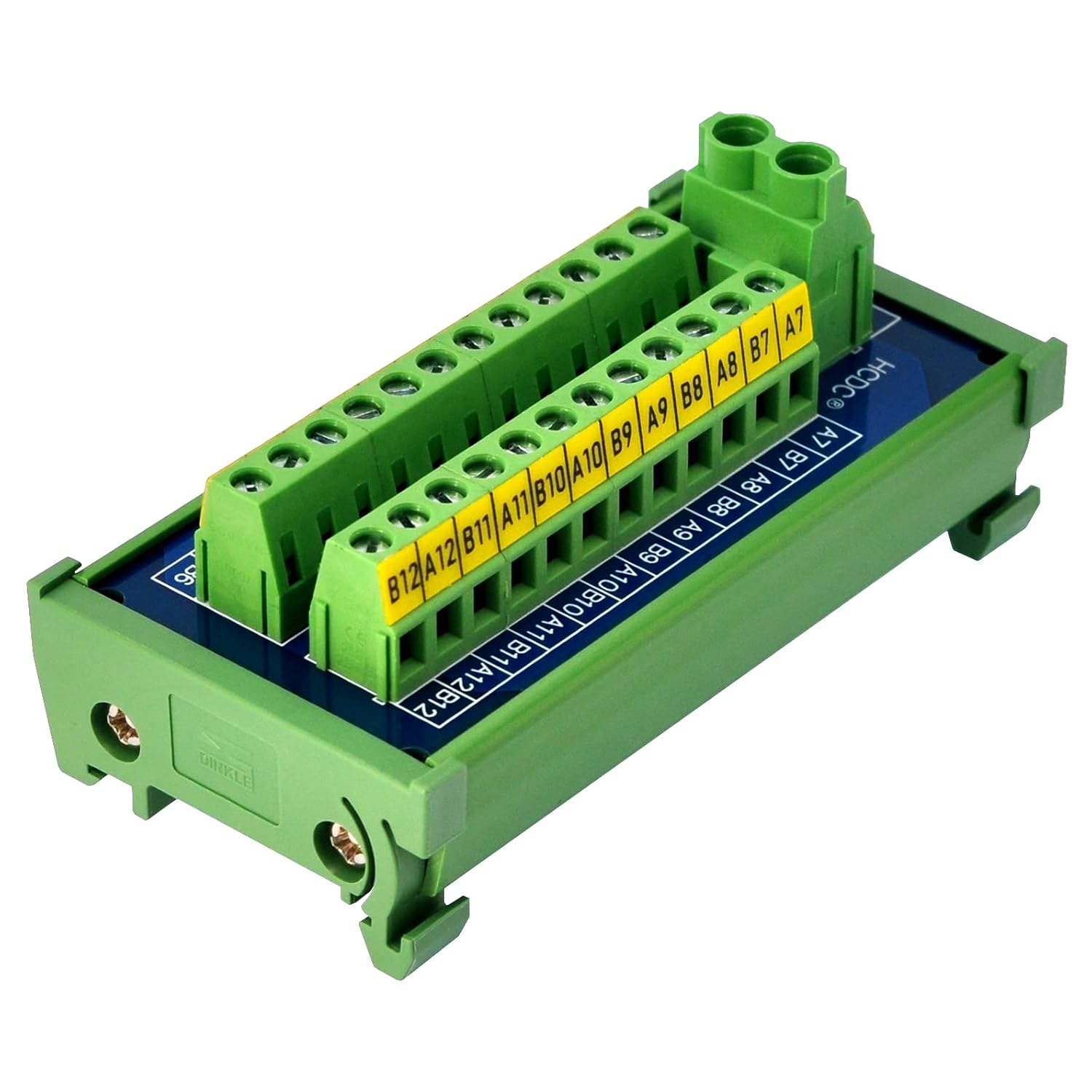

DIN Rail Mount 30Amp 48V 2x12 Position Screw Terminal Block Distribution Module
4.9 (22 items)
Limited Time SaleUntil the end
08
31
42
US$10.80 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
Used US$7.20
Product details
| Management number | 233339269 | Release Date | 2026/06/27 | List Price | US$7.20 | Model Number | 233339269 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- DIN rail mount 30Amp 48V 2x12 position screw terminal block distribution module.
- Rated current: 30 Amp(total input or output). Maximum voltage: 48V.
- A / B terminal blocks, Pitch 7.62mm/0.3", Wire range 26AWG ~ 10AWG / 4.0mm square, rated current 30Amp. Strip length 8mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
- A1~B6 / A7~B12 terminal blocks, Pitch 5.0mm/0.197", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
- High quality fireproof nylon material DIN rail mount carrier(UL CE certified, not China low quality carrier), can support width 35mm rail. UL CE CQC certified terminal blocks. UL CE certified FR-4 glass fiber PCB.
| ASIN | B0BM7XHMJ8 |
|---|---|
| Gauge | 1 |
| Model | HD051T |
| Pitch | 7.62 Millimeters |
| Voltage | 48 Volts |
| Brand Name | HCDC |
| Part Number | HD051T |
| Manufacturer | Xiken Electronic Technology Co., Ltd. |
| Material Type | Nylon |
| Mounting Type | DIN Rail Mount |
| Connector Type | Screw |
| Current Rating | 30 Amps |
| Number Of Poles | 2 |
| Specification Met | Energy Rating |
| Number Of Contacts | 24 |
| Included Components | Terminal block module, Nylon-insulated cord end terminals |
| Number of Positions | 12 |
