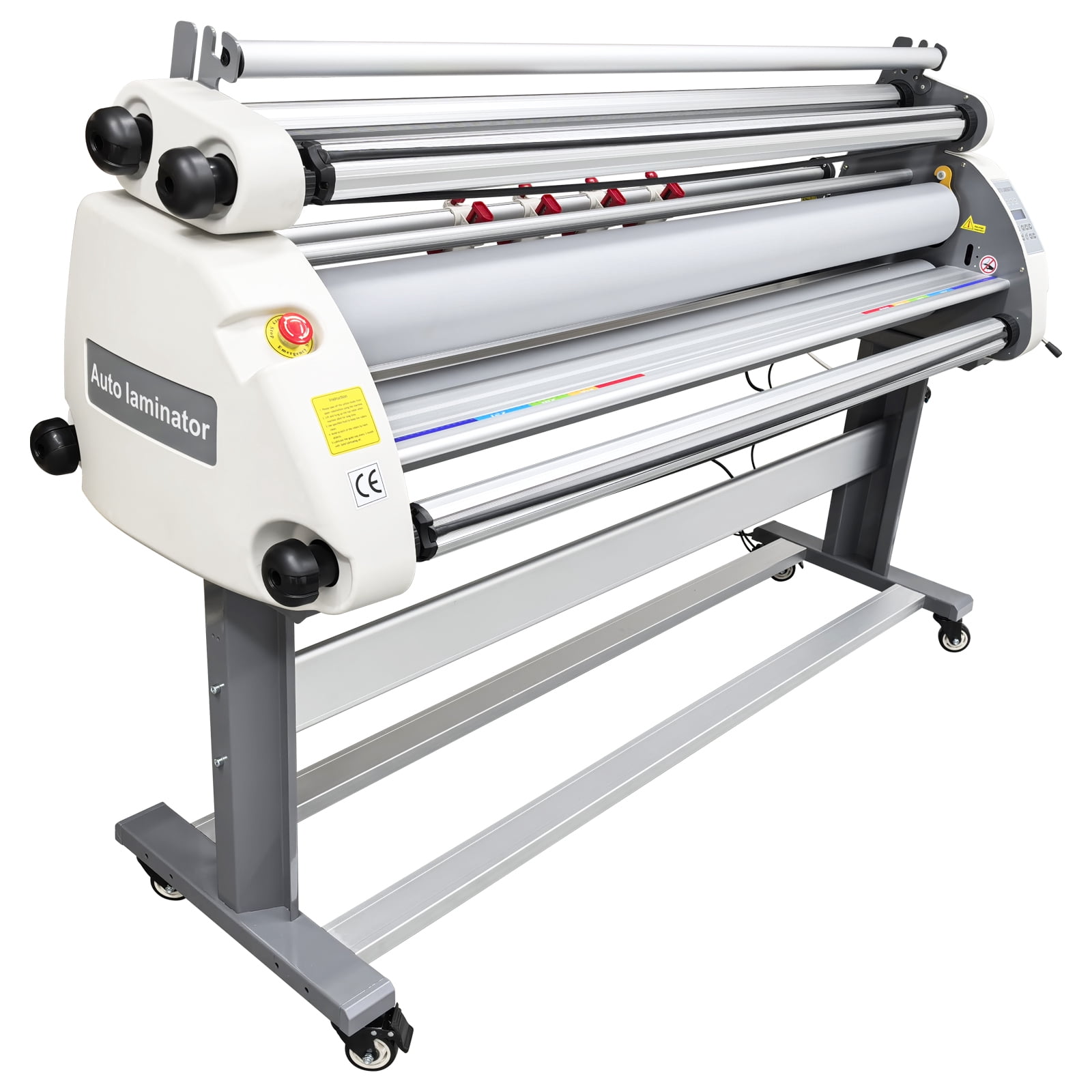

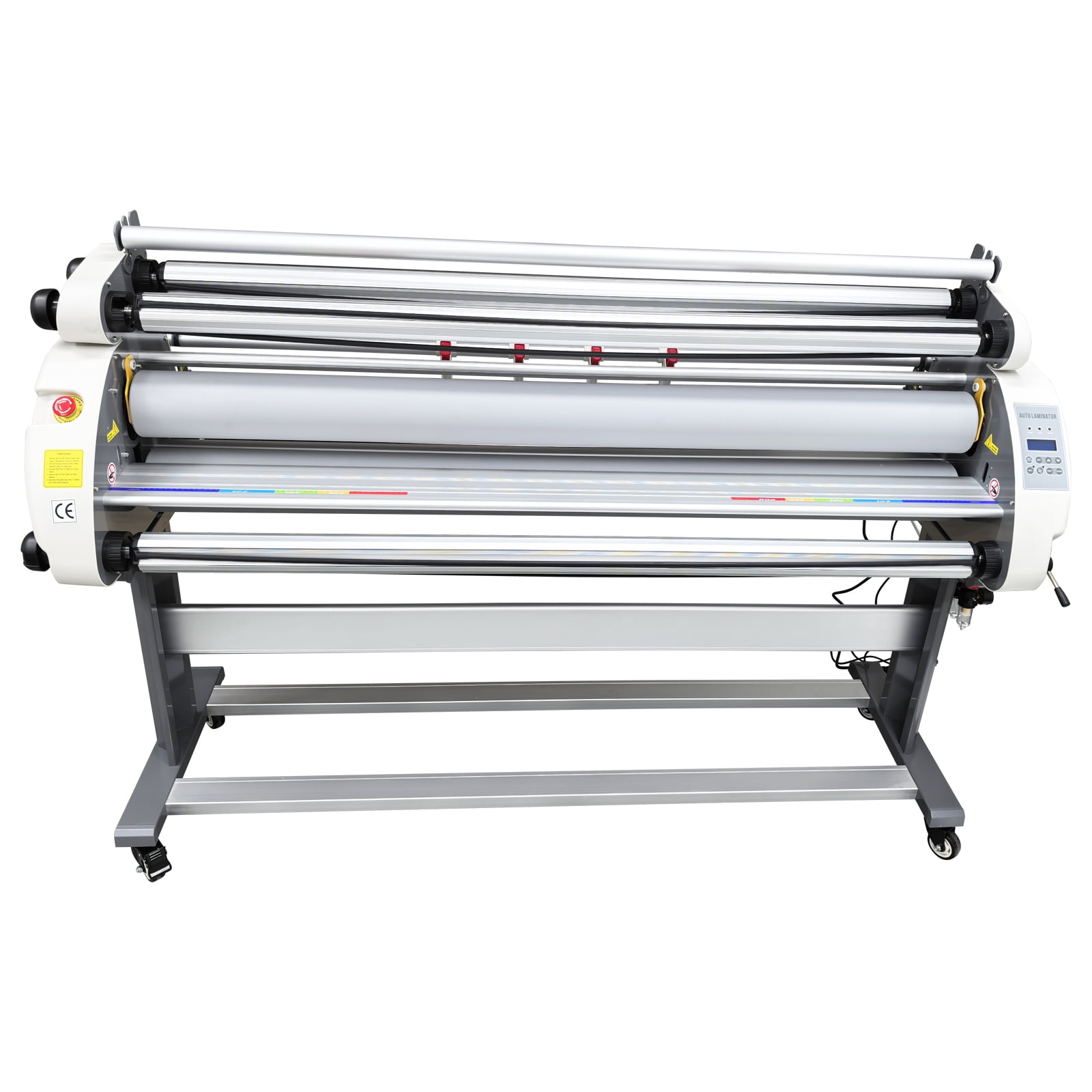

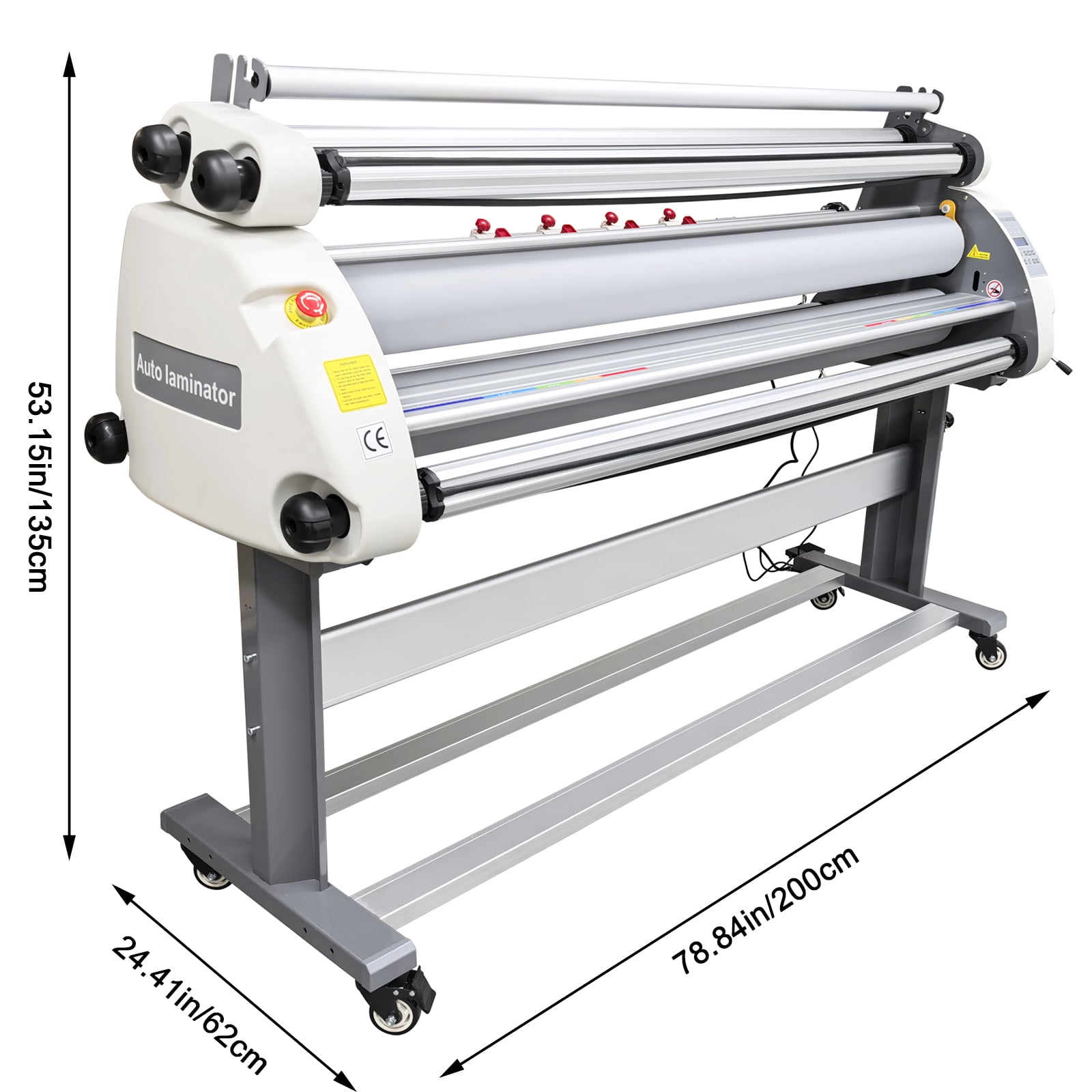

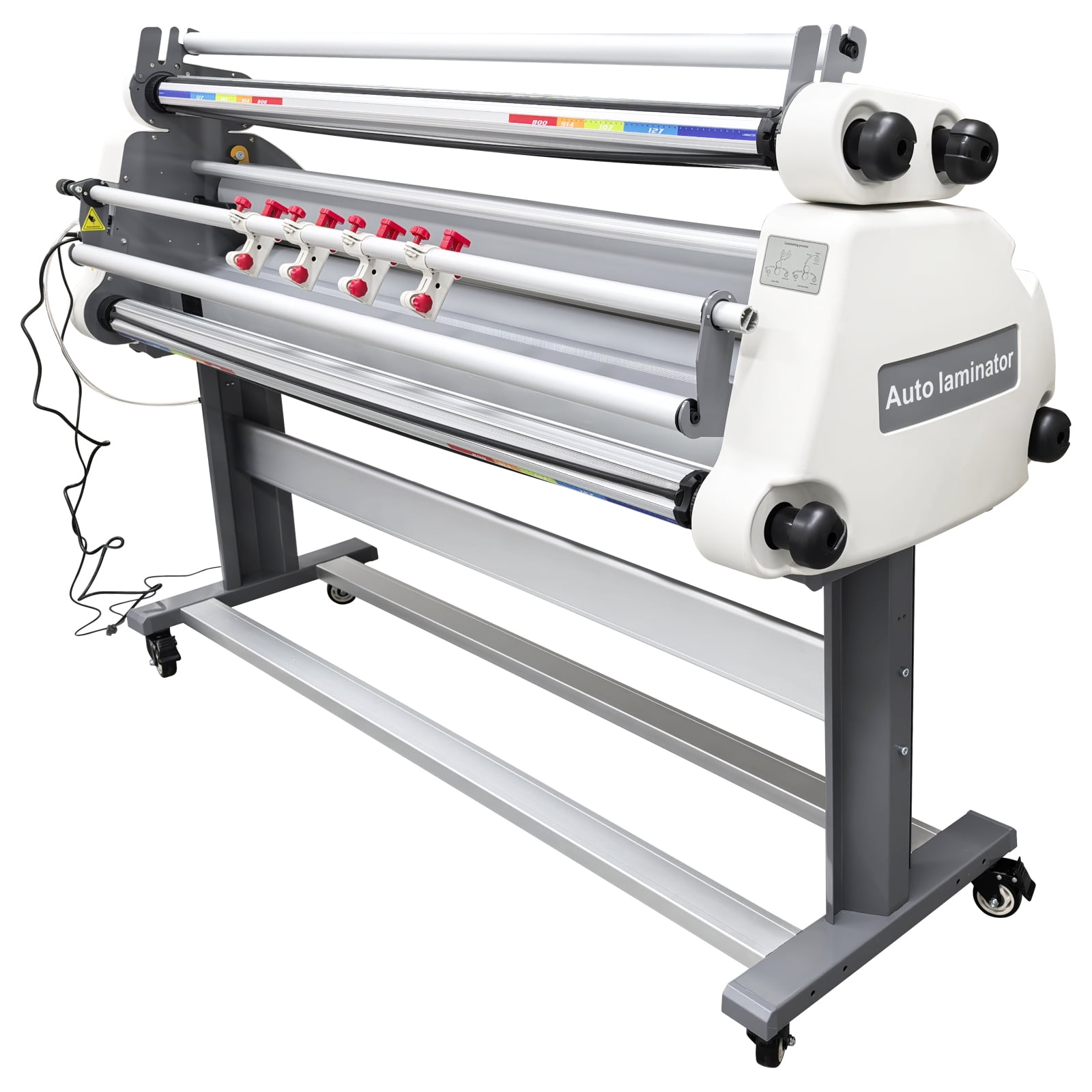

63" Auto Pneumatic Low Temperature Laminating Machine Advertising Paper Lamination Electric Laminator

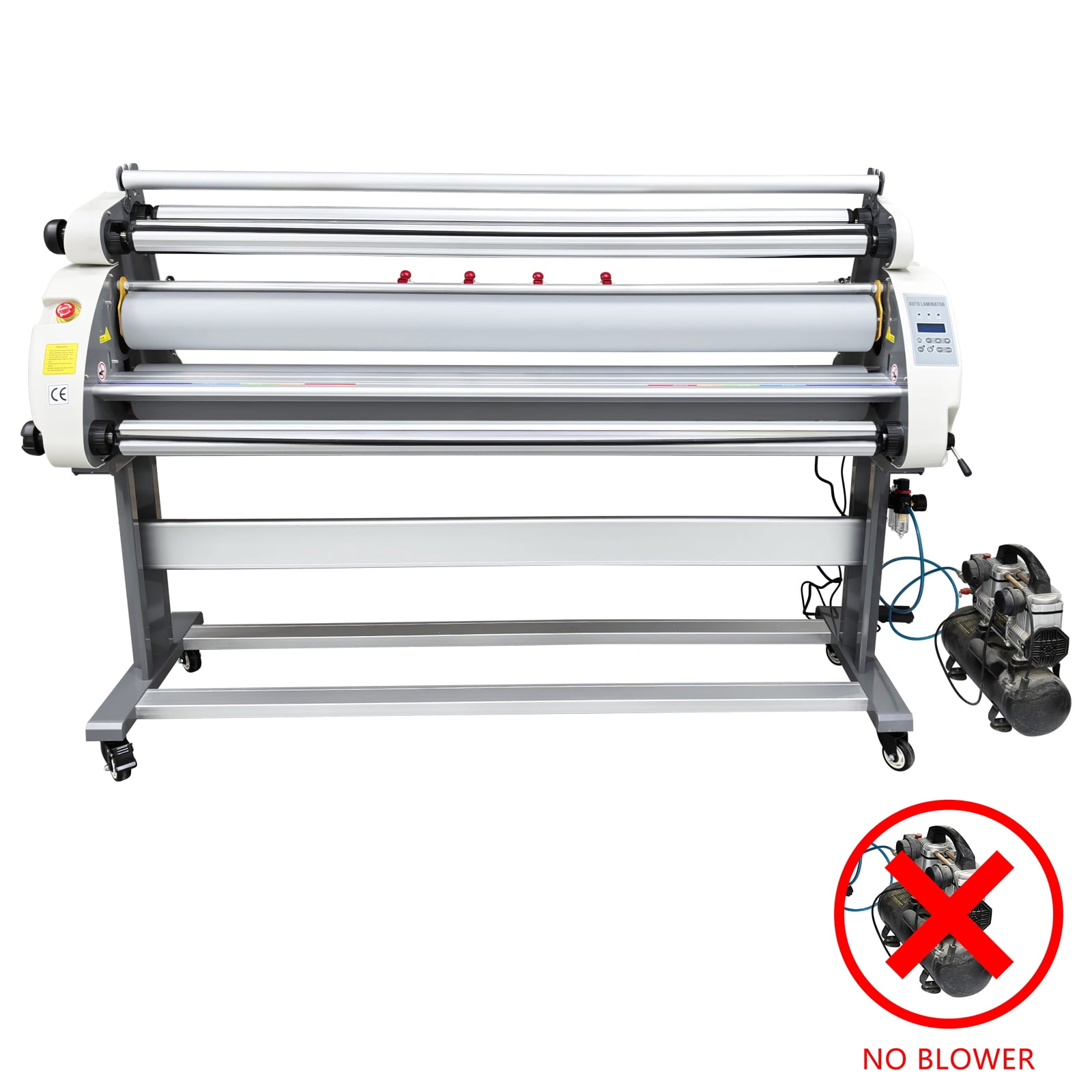

Note: The machine should be used with the 8L air compressor prepared by the customer.<br> Product Overview:<br> The novel laminating machine can cover drawings with different films through the cold press technology and the heating function. The finished drawings will be waterproof, colorfast and colorful. The films with or without bottom paper can be used by our excellent machine. The pneumatic laminator also has a function for easily cutting the drawings covered with films. It will be a satisfying partner for your work and business.<br> Our Customer Service System will offer you a long-term and reliable technical service!<br> Please believe that we are always pursuing outstanding technical performance and excellent quality!<br> <br> Product Parameters:<br> Max. laminating width: 63In (1600mm)<br> Max. laminating thickness: 1.38In (35mm)<br> Max. Laminating speed: 10m/min<br> Temperature adjusting range: Room temperature-140℉<br> Roller lifting way: Using cylinders and bilateral linkage promotion<br> Roller heating type: Within the infrared heating<br> Preheating time: 10-15min<br> Diameter of upper and lower rubber rollers: 5.12in (130mm)<br> Motor power: 120W<br> Heating rod power: 1500W<br> Rated input voltage: 110V<br> Net weight: 293Lb<br> Non-contact infrared temperature measurement system: Electric foot switch<br> <br> Application<br> The Pneumatic Low Temperature Laminating Machine can be widely applied to lamination of wedding photos, posters, advertising photographs, book covers, documents, calligraphy and painting, invitations and so on, and is suitable for the enterprises and industries of advertising, printing, photography, packaging and the like.<br> <br> Operation method<br> 1. Connect the air compressor. (No air compressor is included, and customers need to use their own air compressor.)<br> 2. Connect the 110V power supply and turn the emergency switch. Both cold lamination and thermal lamination can be conducted, and the detailed operation method can refer to the following video.<br> <br> Item included((120076):<br> Techtongda 63In Full-Auto Pneumatic Low Temperature Laminating Machine(Excluding air compressor)

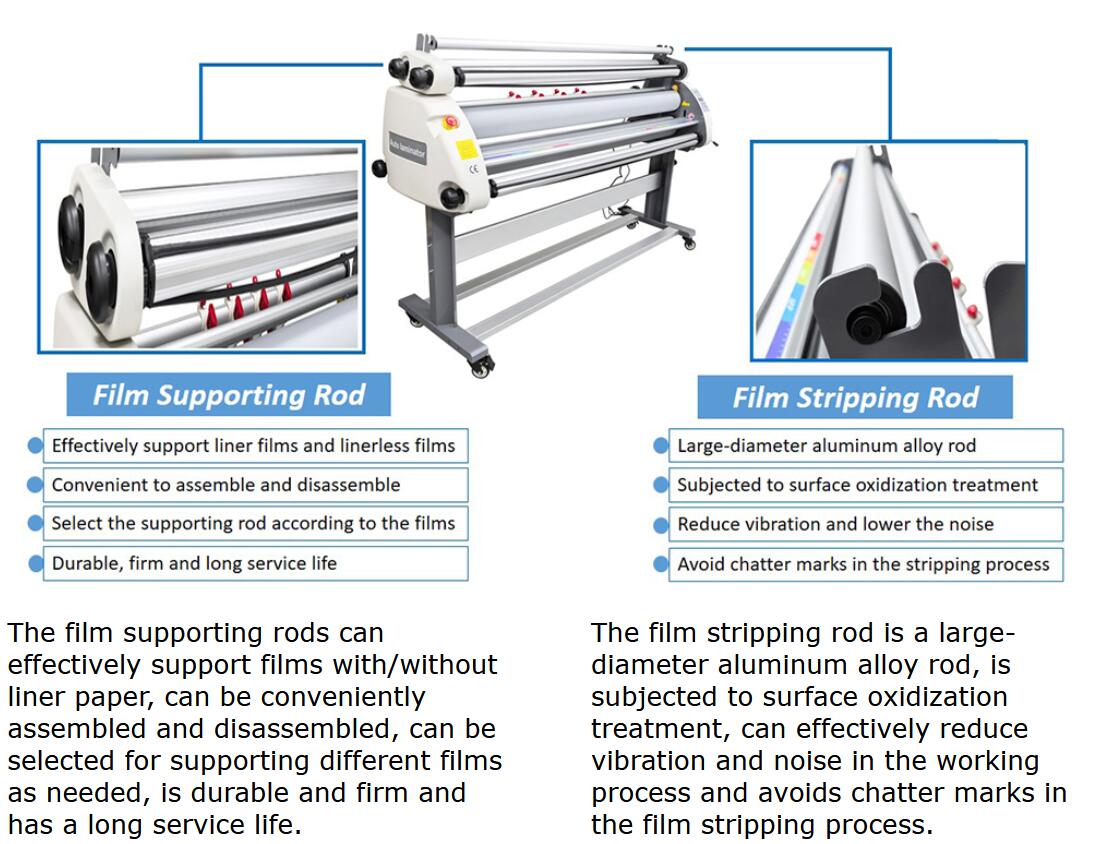

• The film supporting rods can effectively support films with/without liner paper, can be conveniently assembled and disassembled, can be selected for supporting different films as needed, is durable and firm and has a long service life.
• The film stripping rod is a large-diameter aluminum alloy rod, is subjected to surface oxidization treatment, can effectively reduce vibration and noise in the working process and avoids chatter marks in the film stripping process.

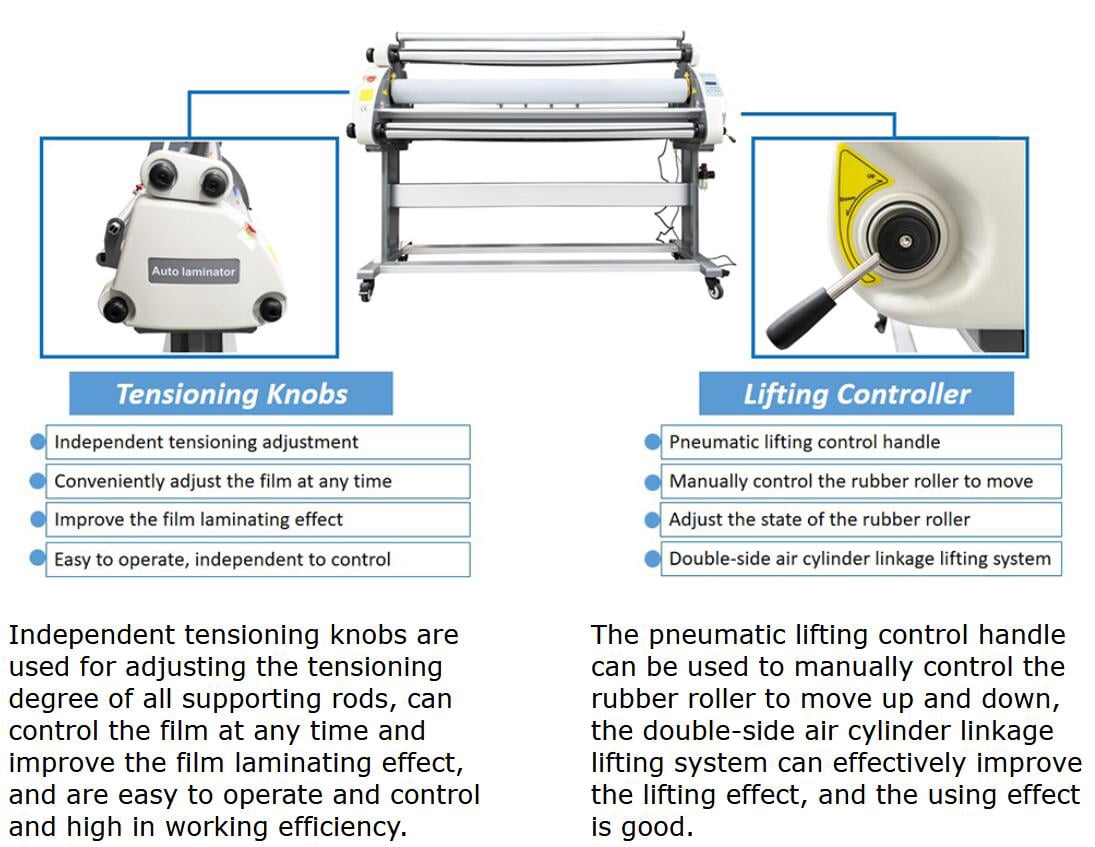

• The pneumatic lifting control handle can be used to manually control the rubber roller to move up and down, the double-side air cylinder linkage lifting system can effectively improve the lifting effect, and the using effect is good.

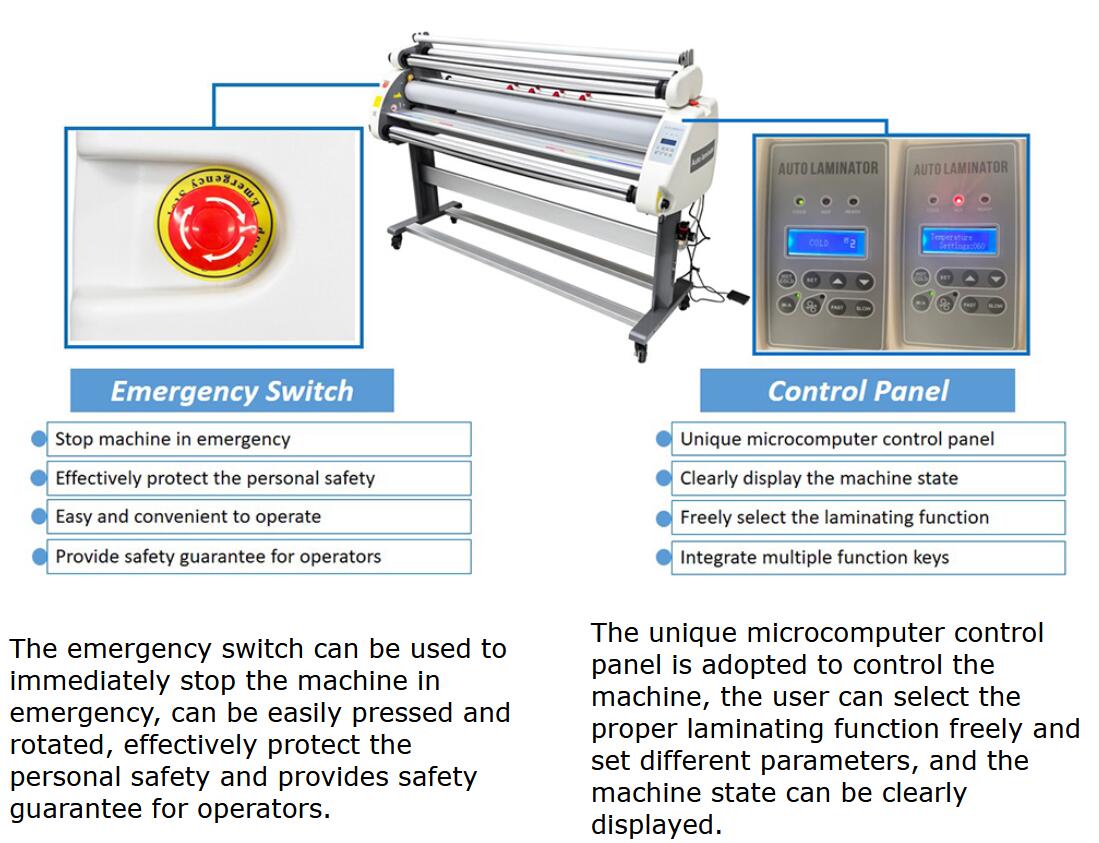

• The emergency switch can be used to immediately stop the machine in emergency, can be easily pressed and rotated, effectively protect the personal safety and provides safety guarantee for operators.
• The Pneumatic Low Temperature Laminating Machine can be widely applied to lamination of wedding photos, posters, advertising photographs, book covers, documents, calligraphy and painting, invitations and so on, and is suitable for the enterprises and industries of advertising, printing, photography, packaging and the like.
